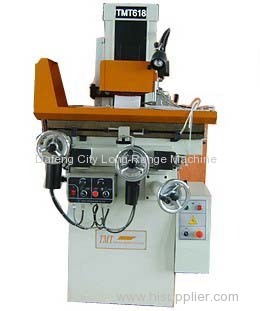

Electric surface grinding machine with CE certificate
Price: |
3196.0~3440.0 USD |
Payment Terms: |
T/T |
Place of Origin: |
Jiangsu, China (Mainland) |
Product Detail
Model No.:
MD820
Production Capacity:
500sets/month
Delivery Date:
20days after receive paymen...
Automation:
Automatic
Material / Metal Processed:
Others
Means of Transport:
Ocean
Packing:
Standard export package
Power:
Others
Certification:
ISO 9001:2000
Brand Name:
Tieju
our casting is made by resin sand;using a copper core intensive sucker chuck;adopting the exceeding precise P4 level ball bearing for spindle
Main specifications | Unit | MD820 | MDS820 |
Max. workpiece to be Ground ( L× W× H) | mm | 560×260×420 | 560×260×420 |
Max. Grinding Length | mm | 540 | 540 |
Max. Grinding Width | mm | 250 | 250 |
Distance From Table Surface To Spindle Center | mm | 420 | 420 |
Table Size (L× W) | mm | 540× 250 | 540× 250 |
T -Slot | mm× n | 14× 1 | 14× 1 |
Speed Of Working Table | m/min | 3-20 | 3-20 |
Cross Feed On Handwheel | mm | 0.02/Graduation 2.5/revolution | 0.02/Graduation 2.5/revolution |
Vertical Feed On Handwheel | mm | 0.01/Graduation 1.25/revolution | 0.01/Graduation 1.25/revolution |
Wheel Size (dia. × width× bore ) | mm | Φ200×20×Φ31.75 | Φ200× 20×Φ31.75 |
Spindle Speeds | 50Hz | rpm | 2850 | 2850 |
Spindle Motor | Kw | 1.5 | 1.5 |
Coolant Pump | Kw | 0.04 | 0.04 |
Machine Size (L× W× H) | mm | 1680× 1140× 1760 | 1680× 1140× 1760 |
Packing Size (L× W× H) | mm | 1200× 1400× 1940 | 1200× 1400× 1940 |
Gross;Net Weight | T | 0.98; 0.88 | 1.03 ;0.93
|
