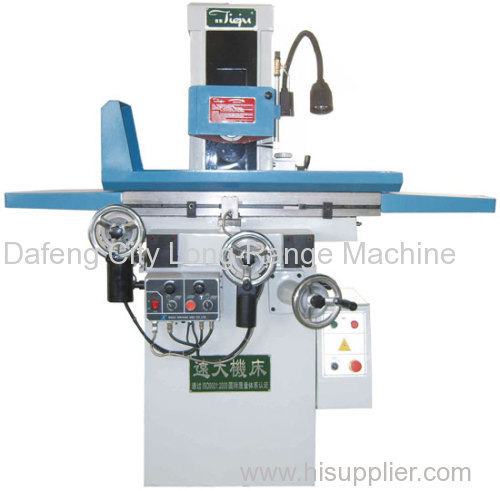

Electric surface grinding machine MD618A manufacturer from China Dafeng City Long-Range Machine Co., Ltd.

Product Detail

Model No.: MD618A

Production Capacity: 500sets/month

Delivery Date: 20days after receive paymen...

Automation: Automatic

Material / Metal Processed: Others

Means of Transport: Ocean

Packing: Standard export package

Power: Others

Certification: ISO 9001:2000

Brand Name: Tieju

our casting is made by resin sand;using a copper core intensive sucker chuck;adopting the exceeding precise P4 level ball bearing for spindle

Main specifications	Unit		MD618A	MDS618A
Max. workpiece to be Ground ( L× W× H)	mm		500×190×335	500×190×335
Max. Grinding Length	mm		460	460
Max. Grinding Width	mm		180	180
Distance From Table Surface To Spindle Center	mm		335	335
V-type rail with Steel-ball	Kg		200	200
Table Size (L× W)	mm		460× 180	460× 180
T -Slot	mm× n		14× 1	14× 1
Speed OF Working Table	m/min		3-20	3-20
Cross Feed On Handwheel	mm		0.02/Graduation 2.5/revolution	0.02/Graduation 2.5/revolution
Vertical Feed On Handwheel	mm		0.01/Graduation 1.25/revolution	0.01/Graduation 1.25/revolution
Rapid transverse movement	r/min		144	144
Wheel Size (dia. × width× bore )	mm		Φ180× 13× Φ31.75	Φ180× 13× Φ31.75
Spindle Speeds	50Hz	rpm	2850	2850
Spindle Motor	Kw		1.1	1.1
Coolant Pump	Kw		0.04	0.04
Machine Size (L× W× H)	mm		1550× 1150× 1590	1550× 1060× 1590
Packing Size (L× W× H)	mm		1000× 1150× 1760	1000× 1150× 1760
Gross;Net Weight	T		0.77; 0.67	0.78 ;0.68
